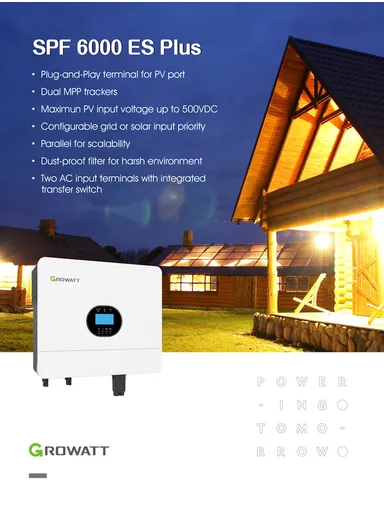

6KW Pure Sin Wave Solar Inverter SPF 6000ESPlus Features: Plug-and-Play terminal for PV port Dual MPP trackers Maximum PV input voltage up to 500VDC Configurable grid or solar input priority Parallel for scalability Dust-proof filter for harsh environment Two AC input terminals with integrated transfer switch Specifications: Brand: Growatt Model: SPF 6000ESPlus Battery Voltage: 48VDC Battery Type: Lithium/Lead-acid Rated Power: 6000VA/6000W Parallel Capability: Yes, 6 units maximum AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz Surge Power: 12000VA Efficiency (Peak): 93% Waveform: Pure sine wave Transfer Time: 10ms typical，20ms Max Maximum PV Array Power: 8000W MPPT Range @ Operating Voltage :120VDC ~ 450VDC Number of Independent MPP Trackers/ Strings Per MPP Tracker: 2/1 Max. input current per MPP tracker: 16A Maximum PV Array Open Circuit Voltage: 500VDC Maximum Solar Charge Current:100A Charge Current: 80A AC Input Voltage: 230VAC Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) Frequency Range: 50Hz/60Hz (Auto sensing) Protection Degree: IP20 Humidity: 5% to 95% Relative Humidity(Non-condensing) Altitude <2000m Operating Temperature: 0°C - 55°C Storage Temperature: -15°C - 60°C Net Weight (kgs): 13.5kg Size :(W46 x H39.5 x D13.2)cm Package Included: 1 x Power Inverter
