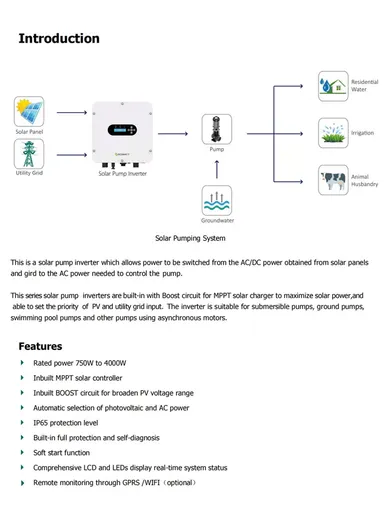

4000W Solar Pump Inverter SPI750~4000TL2-HV Features: Automatically running convenience for customers operate MPPT efficiency up to 99% IP65 protection level suitable for outdoor harsh environment Wide PV input voltage up to 450V to reduce the BOS cost Built-in booster module, flexible solar panel configuration Support PV and AC double input With full/empty water level and dry running protection Natural Cooling, maintenance-free design Remote monitor and smart control system (optional) Input data (DC): Max. PV Power: 5500W Max. DC Voltage: 450V Start Voltage 80V MPP Voltage Range: 100-400V No. of MPP Trackers: 1 No. of Pv strings Per Mpp Tracker: 1 Max. Input Current Per Mpp Tracker: 20A Input Data (AC): Nominal AC Voltage: 220-240V (-15% -+10%) Rated Input Current: 38A AC Grid Frequency: 47-63Hz AC Connection: L,N, PE Output Data (AC): AC Nominal Power: 4000W Rated Output Current: 25A(1PH)/16A(3PH) Nominal AC Voltage Range: 0-220Vac AC Frequency: 0-50/60Hz AC Connection: 1P2L(1PH)/3P3L(3PH) Performance: Control Mode: V/F Type of Motor: Asynchronous machine Pump Capacity: 3000W General Data: Dimensions (W36.5 x D45 x H15)cm Weight: 16.5Kg Operating Temperature Range: -25°C...+60°C Cooling: Natural convection Protection Degree: IP65 Relative Humidity: 0-100% Attitude: 2000m without derating DC Connection: H4/MC4 (Optional) AC Connection: Connector Display: LCD Interfaces: Wi-Fi/GPRS (Optional) Package Included: 1 x Inverter
