Single Product

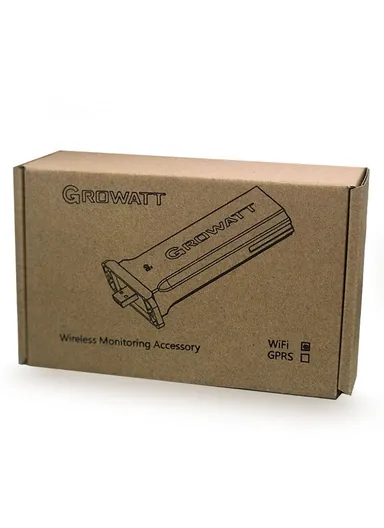

Growatt Wifi-F Dongle - Solar Inverter Wifi Module Features: Cable-free, easy installation 50 meters long-range, wide coverage Build-in storage, 1-month data Online monitoring and maintenance Wireless Parameters: Wireless Type: WIFI Wireless Standard: 802.11 b/g/n Transmit Power: 802.11b: +20dBm(Max); 802.11b: +18dBm(Max); 802.11b: +15dBm(Max); Receiver sensitivity: 802.11b: -89dBm(Max.); 802.11g: -81dBm(Max.); 802.11n: -71dBm(Max.) Hardware Parameters: Data Interface: UART: 9600bps; Ethernet: 100Mbps Operating Voltage: 5V (+/-15%) Operating Current: 1A Operating Temperature: -20°C~+65°C Storage Temperature: -40°C~+70°C Network Type: AP (Acess Point); station mode (with soft AP) Security Mechanisms: WEP / WPA-PSK / WPA2-PSK Encryption: WEP64 / WEP128 / TKIP / AES Application on Parameters: Supported servers: ShineServer Inverter communication: USB A-type Sever Communication: WiFi via router (Modbus TCP protocol) Supported Routers: Wireless router (including 3G router) User Configuration Interface: Wireless web server (Internet Browser) Max. Communication Range: 100m Data Transfer Interval: 5 minutes Default Server URL: server-cn.growatt.com Gener al Data: Dimensions: (L135 x W79 x D29)mm Weight: 63g Manual language: English, Chinese
