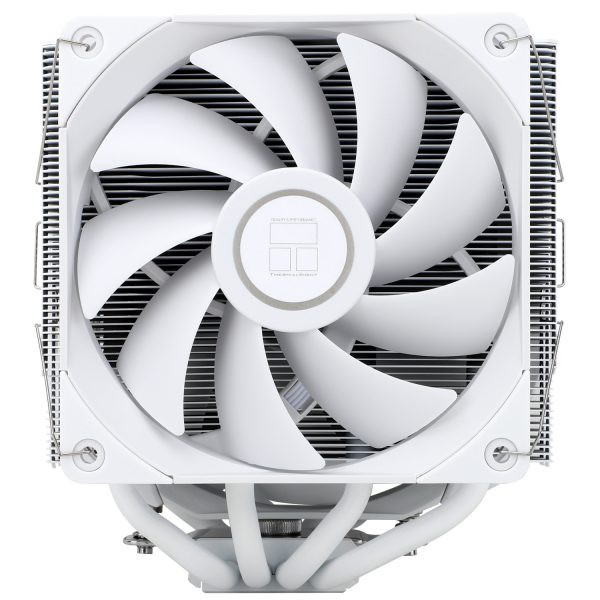

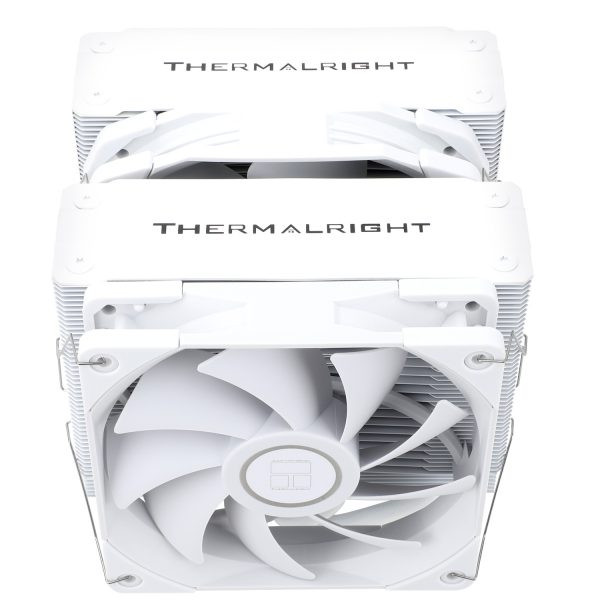

Thermalright Frost Spirit 140 White V3 CPU Air Cooler
Thermalright Frost Spirit 140 White V3 CPU Air Cooler, Dual Tower 4x8mm Heat Pipes, D14B and C12B PWM Fan, Aluminium Heatsink Cover, AGHP Technology, for AMD AM4 Intel LGA 1150/1151/1200/2011/2066
-Brand Overview: Thermalright is a Taiwan brand with more than 20 years of development. It has a certain popularity in the domestic and foreign markets and has a pivotal influence in the player market. We have been focusing on the research and development of computer accessories. R & D product lines include: CPU air-cooled radiator, case fan, thermal silicone pad, thermal silicone grease, CPU fan controller, anti falling off mounting bracket, support mounting bracket and other commodities.
-Product specification: Thermalright FS140 White V3; CPU Cooler dimensions: 140(L)x146(W)x160(H)mm (5.51×5.75×6.3inch); Product weight:1.31kg(2.89lb); heat sink material: aluminum, CPU cooler is equipped with metal fasteners of Intel & AMD platform to achieve better installation. The offset asymmetric layout is allowed to installation on first graphics card slot, and the height is compatible with memories within 62mm.
-2 PWM Fans: TL-C12B and TL-D14B, Standard size PWM fan:120x120x25mm
Technical Spec :
Heatsink Specifications:
Dimension: L140 mm x W121 mm x H158 mm
Weight: 1000g
Heat pipes: 8mm heatpipe x 4 units
Fin: T = 0.4 mm, Gap=1.6 mm
Copper Base: C1100 Pure copper nickel plated
TL-C12B FAN Spec
Dimension: L120 mm x W120 mm x H25 mm
Weight: 135g
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 66.17 CFM (MAX)
Air Pressure: 1.53mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
TL-D14B FAN Spec
Dimension: L140 mm x W152 mm x H27 mm
Weight: 145g
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 77.8 CFM (MAX)
Air Pressure: 2.09 mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
