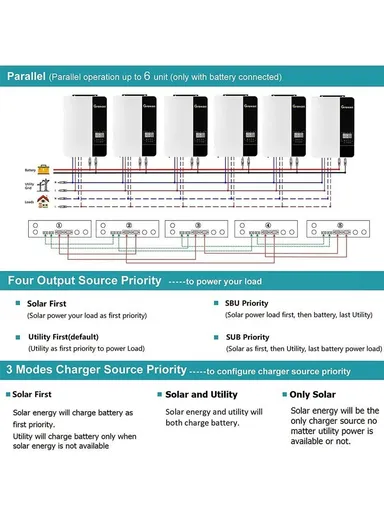

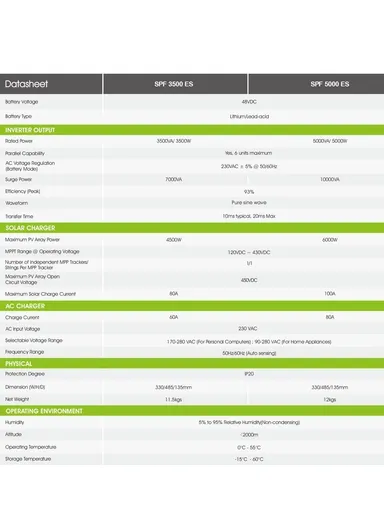

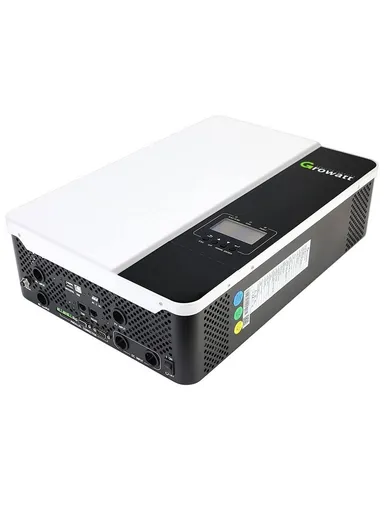

Growatt SPF3500ES Off-Grid Pure Sine Wave Hybrid Solar Inverter with WIFI/GPRS Remote Monitoring This is a multifunctional off-grid solar inverter, integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications. This inverter can work with or without batteries. The whole system also needs other devices to achieve complete running such as PV modules, generators, or utility grids. The Wi-Fi/ GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. Features: Rated Power 3.5KW, power factor 1 MPPT range 120V - 430V, 450Voc High-frequency inverter with small size and lightweight Pure sine wave AC output Solar and utility grid can power loads at the same time With CAN/RS485 for BMS communication With the ability to work without a battery Parallel operation up to 6 units (only with the battery connected) WIFI/GPRS remote monitoring General Specifications: Brand: Growatt Model: SPF 3500 ES Battery Voltage: 48V DC Protection Degree: IP20 Size: (L330 x W485 x H135)mm Net Weight: 11.5Kgs Humidity: 5% to 95% Relative Humidity (non-condensing) Altitude: <2000m Operating Temperature: 0°C - 55°C Storage Temperature: -15°C - 60°C Inverter Output: Battery Type: Lithium/ Lead-acid Rated Power: 3500VA/ 3500W Parallel Capability: 6 units maximum AC Voltage Regulation (Battery Mode): 7000VA Efficiency (Peak): 93% Waveform: Pure Sine Wave Transfer Time: 10ms typical, 20ms Max Solar Charger: Maximum PV Array Power: 4500W MPPT Range @ Operating Voltage: 120V DC - 430V DC Number of independent MPP Trackers/ Strings Per MPP Tracker: 1/1 Maximum PV Array Open Circuit Voltage: 450V DC Maximum solar Charge Current: 80A AC Charger: Charge Current: 60A AC input Voltage: 230V AC Selectable Voltage Range: 170 - 280V AC (for personal computers); 90 - 280V AC (for home appliances) Frequency Range: 50Hz/60Hz (Auto sensing) Package Includes: 1 x Hybrid Solar Inverter 1 x Parallel Communication Cable 1 x Current Sharing Cable 1 x USB Communication Cable 1 x WIFI/GPRS Device 1 x User Manual
