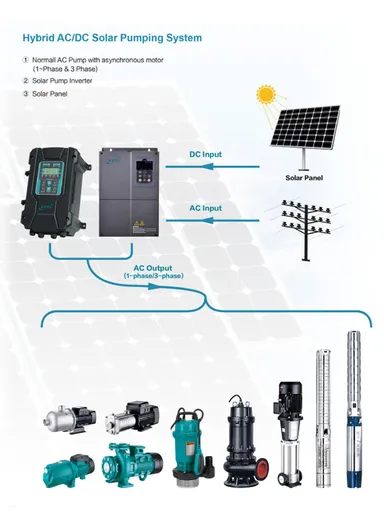

75KW Solar Pump Inverter 3-phase Input/Output Solar pumping system consists of solar module array, inverter, water pump, etc. Provide water supply solutions for the region that with no power supply Low Operation Cost No-Fuel Cost High Efficiency Easy Installation Wide Application Zero Carbon Emission Application: Desert control, Swimming Pool water circulation, Farm irrigation, Livestock feeding, Domestic water supply Reliability: Smart IGBT module integrated to simplify system design, reduce board space, simplify the manufacturing process, and thus improved reliability Multi Built-in Protection: Lighting protect, Over/Low Voltage protect, Locked rotor protect, Output phase loss protect, Short-circuit protect, Dry-run protect (Need level sensor), Full tank protect (Need level sensor) 26 years of pumping solution experience to ensure product and quality level Soft start to prevent water hammer and increase system life Cost Saving: Easy installation & Low installation cost Easy maintenance & Low maintenance cost MPPT Function gets high efficiency Save grid electricity costs Flexibility: Compatible with IEC 3-Phase or 1-Phase asynchronous motor Compatible with popular solar arrays Compatible with AC power of the generator Compatible with grid main supply Smartness: MPPT Function: Self-adaptive power point tracking technology with up to 99% efficiency Self-adaptation to the pump motor Automatically output speed adjustment Compatible with both AC and DC input Remote monitoring function optional Technical Data (SPI-4T-075; 75KW ; AC Input: 3-phase ; AC Output: 3-Phase) Input Parameter: Max. Input Voltage: 750V Suggest Input Range: 450VDC - 700VDC (MPPT) Adapted Pump Power: 55/64KW MAx. Current: 157A AC Voltage: 380/400/415VAC Three Phase Output Parameter: Output Voltage(V): 380/400/415VAC Three Phase Output Frequency: 0-50Hz/ 60Hz Output Power: 75Kw Output Current: 150A Other Parameter: IP Grade: IP20 Environment Temperature: -10 - +50C Humidity: <95%RH, No Condensation Size: (L635 x W485 x H440)mm Weight: 33Kg Certificate: IEC/EN61800-5-1, IEC/EN61800-3, IEC/EN6100, CE
