Single Product

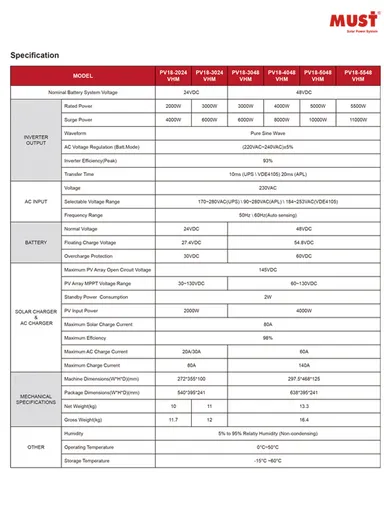

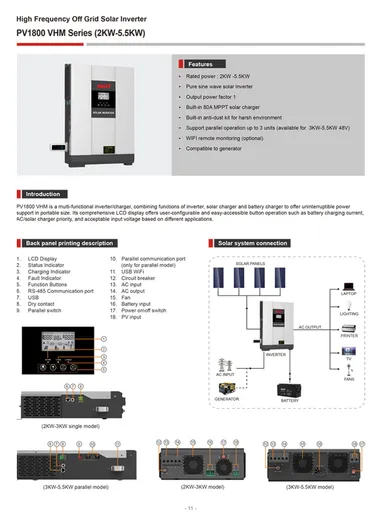

Must 5KW High-Frequency Pure Sine Wave Off Grid Solar Inverter PV18-5048 VHM PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications Features: Pure sine wave output Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc). Built-in 80A MPPT solar charger Built-in anti-dust kit for harsh environment Combining solar system, AC utility, and battery power source to supply continuous power Overload, short circuit, and Deep discharge protection Cold start function Support USB, RS485 monitoring function WIFI remote monitoring (optional) Compatible with the generator Optional: Support parallel operation up to 3 units (available for 3KW-5KW 48V) INVERTER OUTPUT: Rated Power 5000W Surge Power 10000W Waveform Pure sine wave AC Voltage Regulation (Batt. Mode) (220VAC~240VAC)±5% Inverter Efficiency(Peak) 93% Transfer Time 10ms(UPS / VDE4105) / 20ms(APL) AC INPUT: Voltage 230VAC Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105) Frequency Range 50Hz / 60Hz (Auto sensing) BATTERY: Normal voltage 48VDC Floating Charge Voltage 54.8VDC Overcharge Protection 60VDC SOLAR CHARGER & AC CHARGER: Maximum PV Array Open Circuit Voltage 145VDC PV Array MPPT Voltage Range 60~130VDC Standby Power Consumption 2W PV Input Power 4000W Maximum Solar Charge Current 80A Maximum Efficiency 98% Maximum AC Charge Current 60A Maximum Charge Current 140A MECHANICAL SPECIFICATIONS: Machine Dimensions (W*H*D)(mm) 297.5*468*125 Package Dimensions (W*H*D)(mm) 638*395*241 Net Weight(kg) 13.3 Gross Weight(kg) 16.4 OTHER: Humidity 5% to 95% Relative Humidity (Non-condensing) Operating Temperature 0°C~50°C Storage Temperature -15°C -60°C
