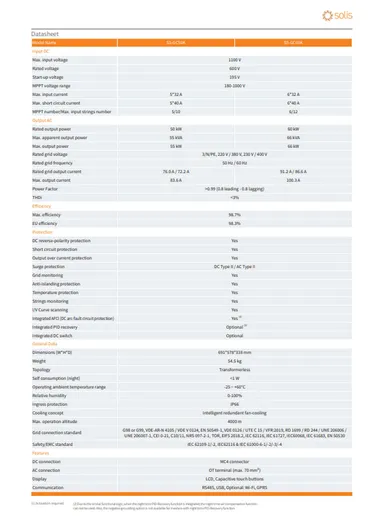

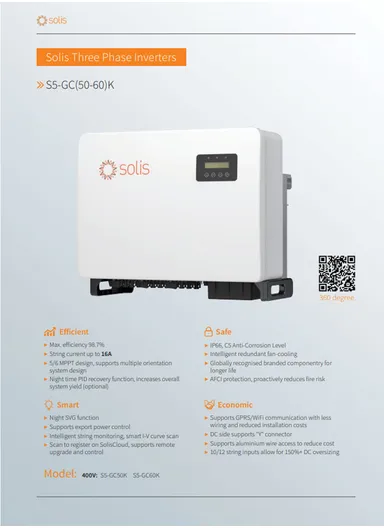

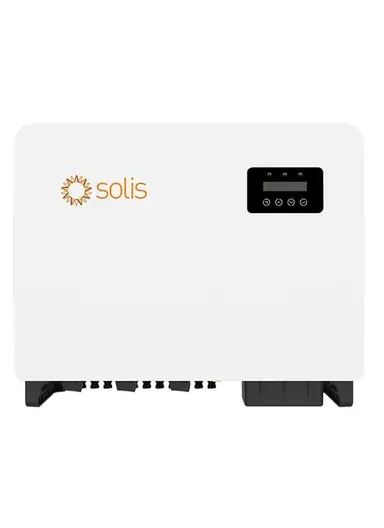

50KW High Frequency ONGrid Solar Inverter S5-GC(50-60)K Features: Efficient Smart Safe Economic Max. efficiency 98.7% String current up to 16A 5/6 MPPT design, supports multiple orientation system designs Night time PID recovery function increases overall system yield (optional) Night SVG function • Supports export power control Intelligent string monitoring, smart I-V curve scan Scan to register on SolisCloud, supports remote upgrade and control IP66, C5 Anti-Corrosion Level Intelligent redundant fan-cooling Globally recognized branded componentry for longer life AFCI protection proactively reduces fire risk • Supports GPRS/WiFi communication with less wiring and reduced installation costs DC side supports "Y" connector Supports aluminum wire access to reduce cost 10/12 string inputs allow for 150%+ DC oversizing Specifications: Brand: Solis Model: S5-GC(50-60)K Input DC: Max. input voltage 1100 V Rated voltage 600 V Start-up voltage 195 V MPPT voltage range 180-1000 V Max. input current: 5*32 A Max. short circuit current:5*40 A MPPT number/Max. input strings number: 5/10 Output AC: Rated output power: 50 kW Max. apparent output power: 55 kVA Max. output power: 55 kW Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid frequency: 50 Hz / 60 Hz Rated grid output current: 76.0 A / 72.2 A Max. output current: 83.6 A Power factor >0.99 (0.8 leading - 0.8 lagging) THDi <3% Efficiency: Max. efficiency 98.7% EU efficiency 98.3% Protection: DC reverse-polarity protection Yes Short circuit protection Yes Output over current protection Yes Surge protection DC Type II / AC Type II Grid monitoring Yes Anti-islanding protection Yes Temperature protection Yes Strings monitoring Yes I/V Curve scanning Yes Integrated AFCI (DC arc-fault circuit protection) Yes (1) Integrated PID recovery Optional (2) Integrated DC switch Optional General Data: Dimensions (W*H*D) 691*578*338 mm Weight 54.5 kg Topology Transformerless Self-consumption (night) <1 W Operating ambient temperature range -25 ~ +60°C Relative humidity 0-100% Ingress protection IP66 Cooling concept Intelligent redundant fan-cooling Max. operation altitude 4000 m Grid connection standard G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 5053 0 Safety/EMC standard IEC 62109-1/-2, IEC62116 & IEC 61000-6-1/-2/-3/-4 Features: DC connection MC4 connector AC connection OT terminal (max. 70 mm²) Display LCD, Capacitive touch buttons Communication RS485, USB, Optional: Wi-Fi, GPRS Package Included: 1 x Inverter
