Single Product

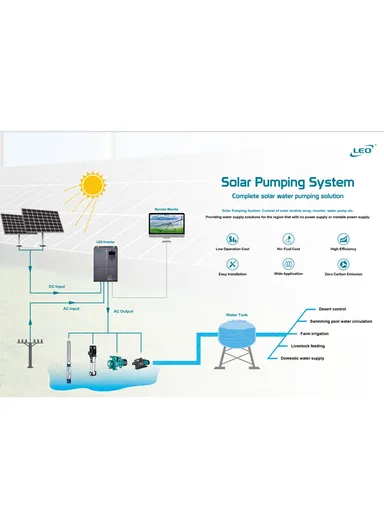

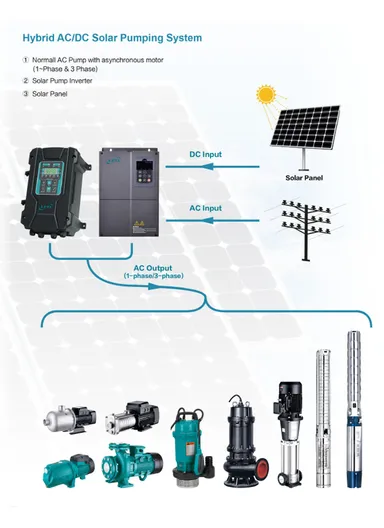

5.5KW Solar Pump Inverter 3-phase Input/Output Solar pumping system consists of solar module array, inverter, water pump etc. Provide water supply solutions for the region that with no power supply Low Operation Cost No-Fuel Cost High Efficiency Easy Installation Wide Application Zero Carbon Emission Application: Desert control, Swimming Pool water circulation, Farm irrigation, Livestock feeding, Domestic water supply Reliability: Smart IGBT module integrated to simplify system design, reduce board space, simplify the manufacturing process and thus improved reliability Multi Built-in Protection: Lighting protect, Over/Low Voltage protect, Locked rotor protect, Output phase loss protect, Short-circuit protect, Dry-run protect (Need level sensor), Full tank protect (Need level sensor) 26 years pumping solution experience ensure product and quality level Soft start to prevent water hammer and increase system life Cost Saving: Easy installation & Low installation cost Easy maintenance & Low maintenance cost MPPT Function get high efficiency Save gri electricity costs Flexibility: Compatible with IEC 3-Phase or 1-Phase asynchronous motor Compatible with popular solar arrays Compatible with AC power of generator Compatible with grid main supply Smartness: MPPT Function: Self-adaptive power point tracking technology with up to 99% efficiency Self-adaptation to the pump motor Automaticly output speed adjustment Compatible with both AC and DC input Remote monitoring function optional Technical Data (SPI-4T-022; 22KW ; AC Input: 3-phase ; AC Output: 3-Phase) Input Parameter: Max. Input Voltage: 750V Suggest Input Range: 450VDC - 700VDC (MPPT) Adapted Pump Power: 4Kw MAx. Current: 14.6A AC Voltage: 380/400/415VAC Three Phase Output Parameter: Output Voltage(V): 380/400/415VAC Three Phase Output Frequency: 0-50Hz/ 60Hz Output Power: 5.5Kw Output Current: 13A Other Parameter: IP Grade: IP20 Environment Temperature: -10 - +50C Humidity: <95%RH, No Condesation Size: (L410 x W285 x H300)mm Weight: 10Kg Certificate: IEC/EN61800-5-1, IEC/EN61800-3, IEC/EN6100, CE
